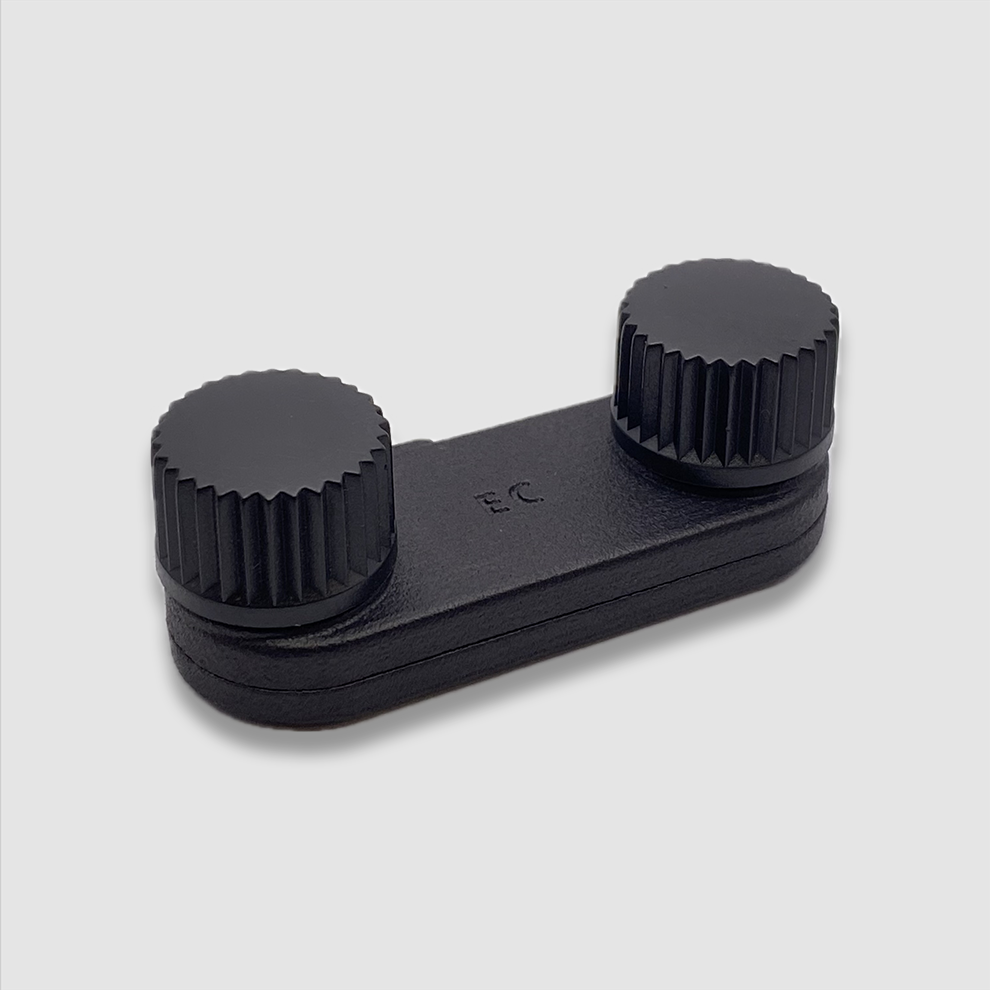

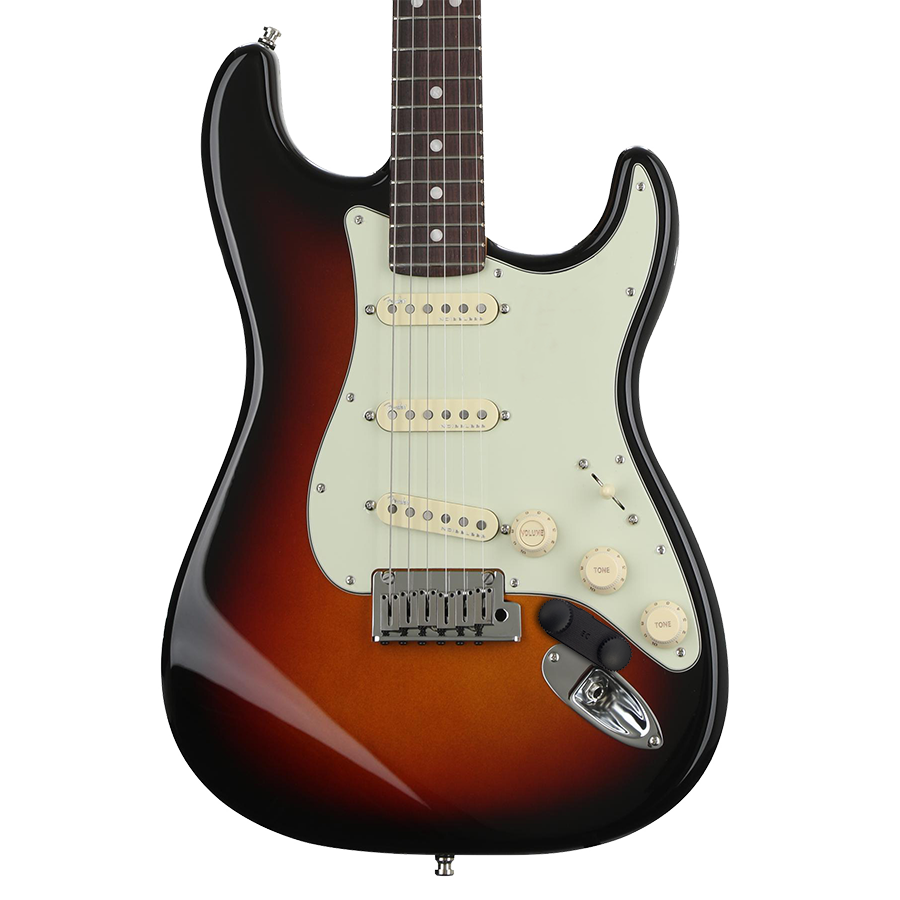

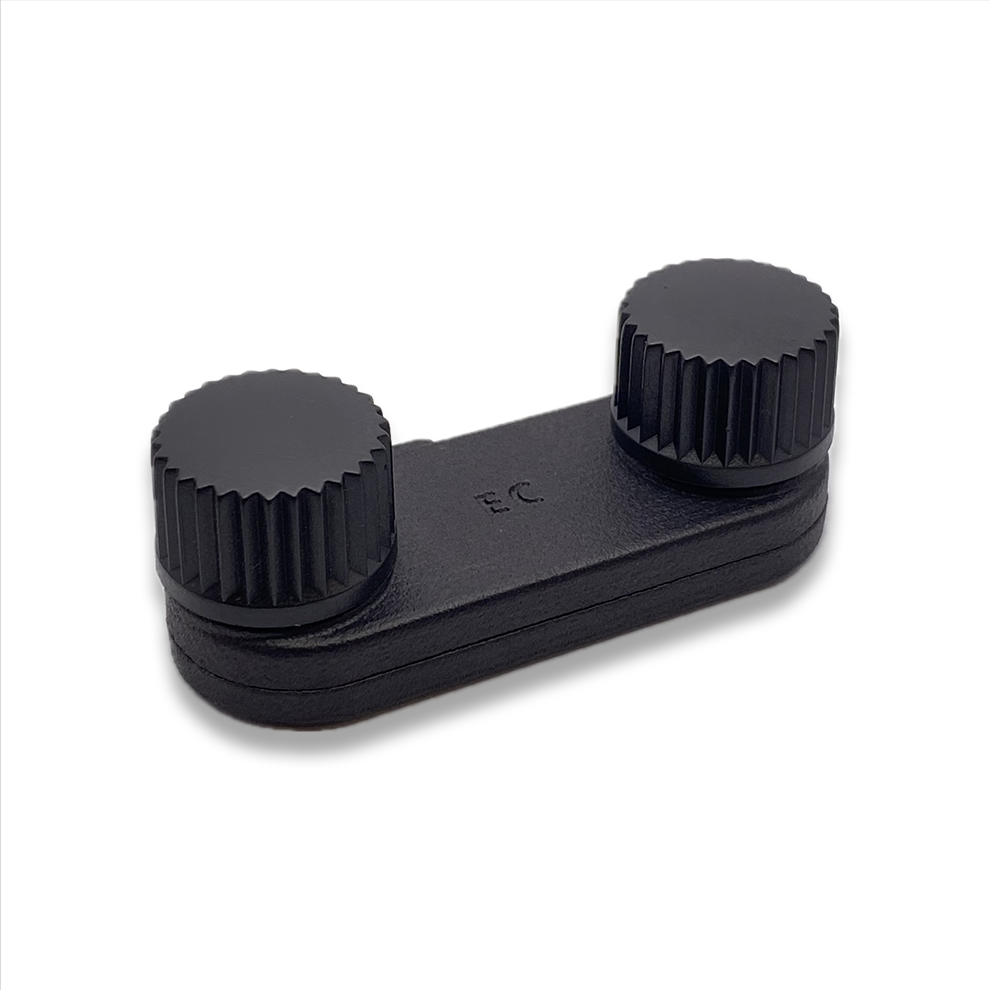

The EC Controllers can be wirelessly paired with Graviton Series Pedals. They can be attached to your instruments with nano pads on the bottom. These pads work like geckos' feet without any adhesives, remaining sticky after being attached and removed multiple times, and are safe for all kinds of guitar finishes.

Each EC Controller feature dual Rotary Encoder Knobs. Each knob can be programmed send multiple Control Change / Program Change / Control Voltage Messages simultaneously, each with its own min / max / speed settings. The two push buttons can be programmed to switch presets, banks, and many more.


  • Fully programmable: With dual Rotary Encoder Knobs (each with a push button), that can be programmed to any Control Change / Program Change / Control Voltage Messages.
  • Smart software: Allows a single knob to control multiple parameters simultaneously, or vice versa. Each parameter can be programmed with individual minimum/maximum ranges and speed settings.
  • Low-profile design: Minimizes changes to the instrument's look and playability (compatible with whammy bars).
  • Simple operation: No need to wait for pairing before playing, no turning on and off— it always works the moment you need it.
  • Advanced wireless: 650ft (200m) range; encrypted signal; strong interference resistance.
  • Ultra-long battery life: 1 month per charge.

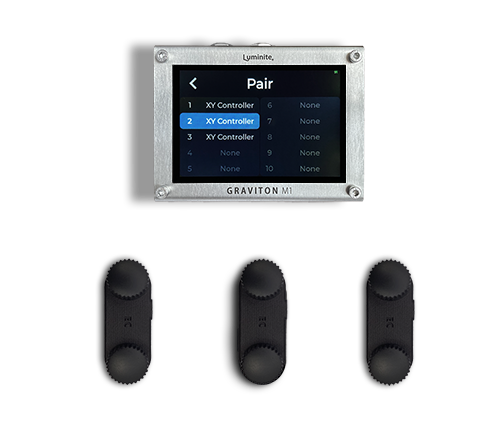

Graviton pedals can pair with up to ten EC Controllers simultaneously, allowing for multiple instruments with their own controllers.

  • Technical Specifications

    • Wireless Range: 650ft (200m).
    • Wireless Frequency: 2.4Ghz
    • Power Input: USB Type-C.
    • Charging Time: 1 hour.
    • Battery Life: 1 months.
    • Width x Depth x Height: 2.36" x 0.88" x 0.82" (60mm x 22.4mm x 21mm).
    • Weight: 0.67oz (19g).
  • What's Included

    • Luminite EC Controller
    • Spare nano pads.
