F10W Wireless Footswitch Pedal
F10W Wireless Footswitch Pedal
Couldn't load pickup availability

What’s New in V2?
- Improved Rugged Footswitches: Highly durable upgraded footswitches with a larger 10 mm head, wider footswitch topper compatibility, and quieter action.
- Low-Latency Wireless: Much lower-latency in wireless mode. Wired mode over TRS cable remains zero-latency.
- Longer Wireless Range: Improved wireless range for stage and larger setups.
- Longer Battery Life: V1 already offers extremely long battery life, and V2 improves it even further with optimized power management.
Do I Need to Upgrade?
Some V2 improvements were gradually introduced into later V1 units. Your F10W may already include some upgrades if it was purchased after these dates:
- Improved Rugged Footswitches — included after July 2025: Identified by 10 mm diameter footswitches instead of 8 mm.

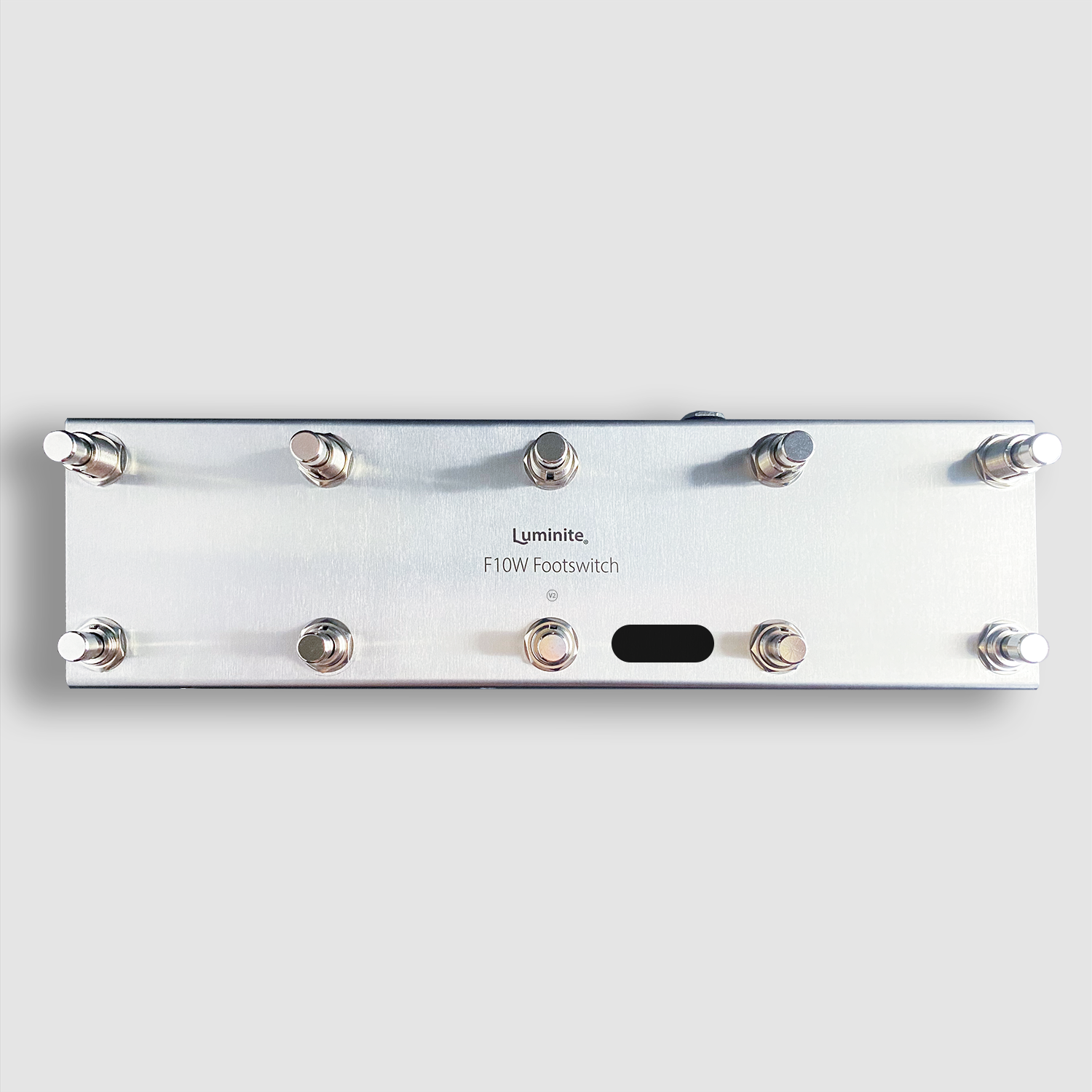

- Longer Wireless Range — included after December 2025: Identified by the black antenna window at the top.
V2 is most useful if you have an older F10W, especially one purchased before July 2025, or if you want the latest hardware with the best wireless performance and latency.
The perfect companion for Graviton MIDI Controllers, featuring advanced wireless technology with significantly longer range and stronger interference resistance compared to Bluetooth. It is also much easier to use—there's no need to turn it on, wait for connection, or turn it off after. It always works like a passive footswitch and maintains its pairing status forever without ever requiring re-pairing, unlike Bluetooth. Perfect for the most demanding live stages.
Features
- Dual mode: Wireless (on rechargeable battery) or wired (with a single 1/4" cable) operation.
- Expandability: Up to 10 x F10W pedals can be paired wirelessly with a Graviton Pedal, for up to 100 footswitches setup.
- Advanced wireless: Long range; encrypted signal; strong interference resistance.
- Ultra-long battery life (wireless mode): 6 months per charge.
- Simple operation: No need to wait for pairing before playing, no turning on and off— it always works the moment you step on it.
- Fully programmable: Each switch can be programmed on the Graviton M1 to send MIDI, switch banks or songs, and more.
- Low Wireless Latency Mode: For time sensitive activities like looping.
- Soft Touch Footswitches: Provides smooth and silent operation.
- Staggered Footswitch Height: Taller at the back and lower at the front for easy access.
- Ultra Low Profile: Ergonomically designed for easy tap dancing.
- Bomb-Proof Stainless Steel Construction: Road-ready durability and reliability.
- Premium Finish: Brushed hairline with laser-engraved logo.
-
Physical Specifications
- Dimensions: 11 x 3.3 x 1.77 inches (280 x 85 x 45 mm)
- Footswitch Spacing: 2.55 inches (65mm)
- Weight: 1.4 lb (650g)
- Material: 19 Gauge Stainless Steel (1mm thickness)
- Finish: Brushed Hairline
-
Technical Specifications
- Wireless Range: 650ft (200m).
- Wireless Frequency: 2.4Ghz
- Wireless Latency: 60ms / 7ms (Low Latency Mode)
- Power Input: USB Type-C.
- Charging Time: 1 hour.
- Battery Life: 6 months.
